Epoxide Ring Preparation by Oxidation of Alkenes

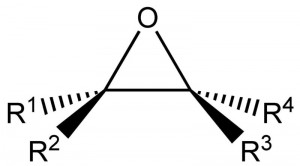

Fig. 1 Epoxide - Image: Wikimedia Commons by pd-self.
Fig. 1 Epoxide

How many have purchased a 2-tube pack of epoxy at their local hardware or grocery store? It’s a routine item we use to repair a variety of objects. But what is it that makes epoxy glue so strong? Its name gives it away. Epoxy glues use epoxy compounds. Epoxides. What is an epoxide?

It’s Simple? Actually, Yes

An epoxide is a molecule with a tiny 3-member ring in its structure. One atom is oxygen. Two are carbon. The epoxy link is illustrated in Figure 1. R₁, R₂, R₃, and R₄ are pendant groups. How is such a 3-member ring created? Often by the oxidation of an alkene. The reader may appreciate an example.¹

Propene

Let’s try the oxidation of propene, CH₃CH=CH₂.² What would be a suitable oxidizing agent for the reaction? It is not practical to use elemental oxygen. The violent conditions that would be needed in order to divide an O₂ molecule into two O atoms would destroy the alkene.

Since we seek to add a lone atom of oxygen to the double bond in the mildest way possible, the logical choice is some kind of unstable peroxide. Why? A peroxide is unstable and wants to eliminate an oxygen atom anyway. For each molecule of H₂O₂ used, one O atom is released, giving water, H₂O.

The reaction is written,

H₂O₂ → H₂O + [O]

Unfortunately, most organic compounds do not dissolve in water or H₂O₂. So, an organic peroxide is needed. Occasionally, rather than a peroxide a peroxycarboxylic acid may be used.

RCO₂OH → RCOOH + [O]

Let’s Boogie

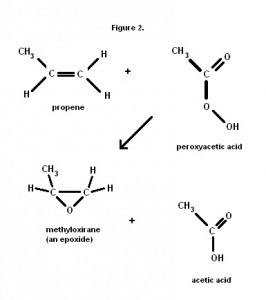

The reaction we will examine uses peroxyacetic acid and propene gas. See Figure 2. Reaction products are acetic acid and the epoxide of propene—propylene oxide. While there are more practical commercial methods, this simple reaction is instructive. But, once prepared, of what value are epoxides (also called oxiranes)?

Epoxidation - Image by author.
Epoxidation – Image by author.

Commercial Epoxide Use

Epoxides afford what practical uses? The ring is fairly unstable. It easily opens in a host of reactions.  Although the most common use for epoxides is in epoxy resins, it is by no means their only use.

Important in Synthesis

Perhaps the most valuable epoxide is the simplest one, ethylene oxide, (CH₂)₂O. It is of no little importance in the laboratory to the synthetic organic chemist.

¹ Symbols for the elements discussed in this article are, for carbon, C, for hydrogen, H, and for oxygen, O.
² Propene is more commonly called propylene.

References:

← Home

2 Comments

  • Meg Reply

    I am a bit confused. Are you saying that when we mix the stuff from the two tubes that we are then making an epoxide? So we should smell vinegar when doing it? And one tube contains a peroxide?

    • Vincent Summers Reply

      No. The epoxy group is contained in one tube. An amine type mix is in the other tube. The two react to form the adhesive.
